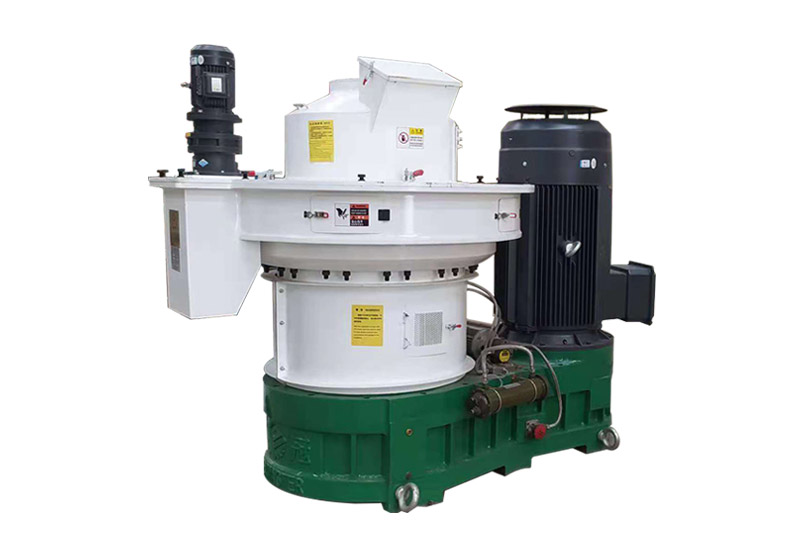

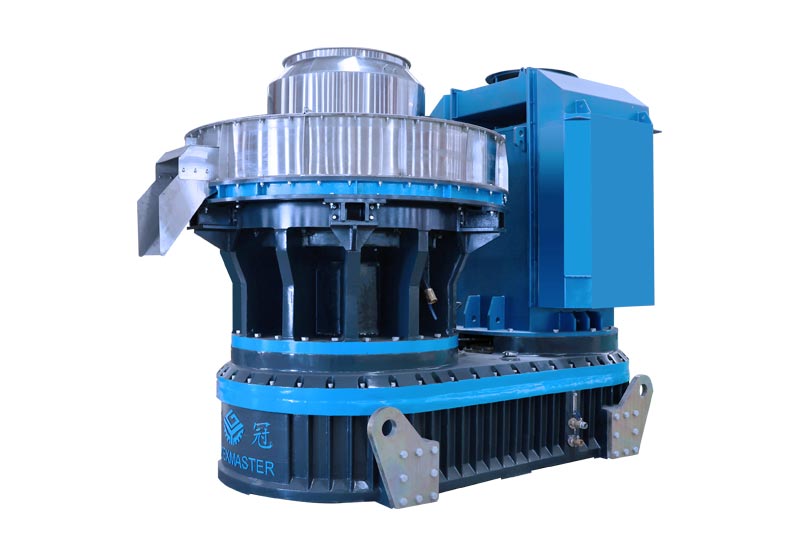

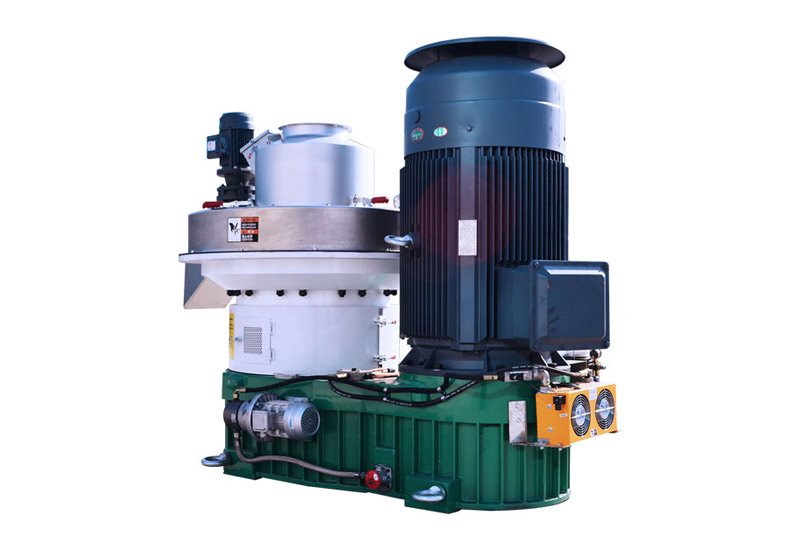

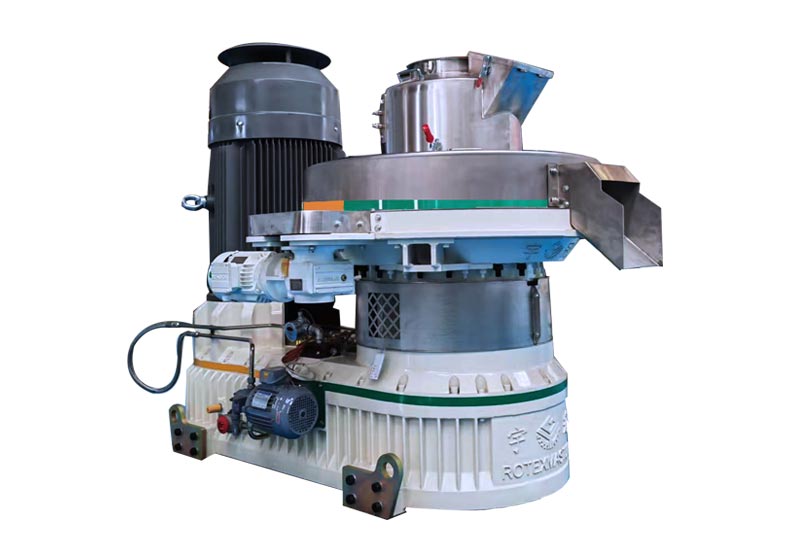

Wood Pellet Machine

Model: YGKJ560; YGKJ700; YGKJ880; YGKJ1280

Capacity: 1.5-2t/h; 2-3t/h; 3-4t/h; 10-15t/h

Power: 132kw; 160kw; 220kw; 880kw

Mould: Ring Die

Final Pellet: 6-12mm

Certification: CE, ISO

Place of Origin: Shandong, China

More+

Inquire Now Download

Introduction of Wood Pellet Machine

Bolida & Rotexmaster vertical ring die wood pellet machine (also wood pellet mill) is the latest wood pellet machine in China. This series of pellet machine absorbs advanced technologies from home and abroad, the core components adopt ”double-layer die” as the unique structure, large modulus hardened helical gearbox, strengthened spindle, It has strong power output, stable equipment operation, low failure rate and low production cast. It fills the gap of vertical feeding of domestic ring die pellet machine, reaching the international advanced level.

Wood pellet machine is suitable for all kinds of biomass raw materials: waste wood, branches, wood chips, sawdust, agricultural straw, rice husk, peanut shells, corn cob, bamboo, grass, alfalfa, sugarcane etc.

The finished pellets is biomass energy as biofuel, which can replace coal, oil, gas, etc., widely used in power plant, boiler, and heating system.

Technical Parameter

Model	Power(KW)	Capacity(T/H)	Pellet Size(MM)	Weight(T)	Dimension(MM)
YGKJ560	90/132	1-1.5; 1.5-2	6-12	5.8	220013001600
YGKJ700	160	2-3	6-12	7.8	240014001800
YGKJ880	220	3-4	6-12	12	280015002300
YGKJ1280	880/1000	10-15	6-12	50	496029503550

Raw Materials for Making Pellets

Wood pellet machine applies for various biomass material, such as all kinds of waste wood, branches, wood chips, sawdust, agricultural straw, rice husk, peanut shells, corn cob, bamboo, grass, alfalfa, sugarcane, coffee husk, efb fiber etc.

Wood Pellet Making

Rice Husk Pellet Making

Bamboo Pellet Making

Peanut Shell Pellet Making

Alfalfa Pellet Making

Straw/Crop Pellet Making

Corn Cob Pellet Making

Efb Fiber Pellet Making

Advantages

Gearbox of Wood Pellet Machine The gear box adopts three-stage gear reduction, module increased, increasing gear strength, carrying more power, prolonging the service life. Gearbox shell of wood pellet machine adopts casting with good rigidity, good heat dissipation, low heat distortion and high stability.

Lubrication System Reducer and main shaft chamber adopts loop closed industrial gear oil lubrication. Biomass pellet machine is equipped with flow detection and over-pressure protection, which can effectively prevent faults caused by poor lubrication.

Cooling System of Gearbox Gearbox Lubricant of sawdust pellet machine adopts circulating water cooling system, avoiding high oil temperature, greatly enhancing the internal bearing life, which can cool the lubricating oil without shutdown to ensure long-term operation

Siemens Brand Motor The motor of wood pellet machine is frequency, with thick copper coil, It won’t be burned due to instantaneous current.

Core component-ring die The die of straw pellet machine is made of stainless steel with whole carburizing, high wear resistance, strong stability, thus enhancing the capacity and reducing cost

Roller the roller adopts wear-resistant alloy welding process, without lock nut structure design, less grease consumption, which greatly extends the bearing life, then reducing cost.

Benefits of Investing in Wood Pellet Machine

1. Low cost: the cost of raw materials is almost zero; equipment investment is small, operation is simple, and the labor cost is very low.

2. Abundant raw materials: all combustible biomass such as crop stalks, rice husk, peanut shell, leaves, dead branches, sawdust, weeds, waste wood etc. can be used as its raw materials.

3. A wide range of applications: wood pellets can be used in home heating stoves, industrial boilers, biomass power plants and other places needing heat.

4. Environmental protection benefits: Turning waste into treasure not only increases income, but also protects the environment, and solves the problem of straw treatment by governments at all levels. The national policy strongly supports it!

5. Lucrative investment: When coal prices are soaring, investing in a pellet plant factory to produce biomass pellets is risk-free and profitable.

Cases Around the Globe

20t/h Wood Pellet Production Line in Indonesia

Country: Indonesia

Capacity: 20t/h

Raw Material: subtropical trees

10t/h Wood Pellet Production Line in Malaysia

Country: Malaysia

Capacity: 10t/h

Raw Material: wood log (acacia wood, eucalyptus wood)

10t/h Wood Pellet Production Line in Philippines

Country: Philippines

Capacity: 10t/h

Raw Material: wood log

6t/h Wood Pellet Production Line in Thailand

Country: Thailand

Capacity: 6t/h

Raw Material: wood log

FAQ

Q: Are you manufacturer or trading company?

A: RotexMaster is leading pellet machinery manufacturer in China, also with marketing department and R&D center.
Q: I am newer to biomass industry, how to design suitable pellet plant?

A: Do not worry about that. We already helped many beginners. We can customize 1-30t/h project according to every customer’s needs. Also we can provide turnkey service.
Q: How to prepare for setting up a wood pellet production line?

A: Factory to set up pellet line, store raw material and pellets
Abundant raw material
Staff needed for operating the pellet line
Transformer to offer enough power for pellet line
Q: How can you guarantee the after-sales service?

A: RotexMaster has professional After-sales service system. Onsite installation, debugging, training, maintenance are available worldwide by 20 years experienced and skillful engineers. Also spare parts can be available timely due to oversea warehouses.
Q: Are there some machines in my area I can observe?

A: RotexMaster has exported to more than 89 countries and regions, if there are machines nearby you, we can contact the customer to arrange a visit for you.
Q: What type of raw materials can be pelletized by RotexMaster pellet machine?

A: Waste wood materials, forest waste, agricultural straw, rice husk, peanut shells, bamboo, sugarcane bagasse, alfalfa, grass, palm fiber, coffee husk, fertilizer etc.
Q: How to confirm the compression ratio of mould for my raw material?

A: Our experienced engineers are familiar with many regular raw material. If your raw material is special, do not worry, we can provide free raw material test. You just need to send your raw material to us, we will find the best way to make pellets with it.
Q: What is the main process for making biomass pellets?

A: Coarse Crushing Section(wood splitter, wood chipper)—Crushing Section—Drying Section—Pelletizing Section—Cooling Section—Packing Section—Controlling Section
Q: What is your work flow if we order Rotexmaster equipment?

A: Inquiry—Customize Plant & Quotation—Communication—Order Confirm & Payment Received—Production—Regular Production Tracing—Quality Inspection for Every Product—Book Vessel & Arrange Delivery—Documents Post/Telex Release—Customs Clearance—Arrange Delivery to Clients` Site—Discharge Goods—Arrange Installation & Commissioning & Training
