If your raw material is a wood log. you need to use a debarker to peel the bark off the log. Because the bark contains a lot of ash, which will affect the quality of the pellets.

Wood Log

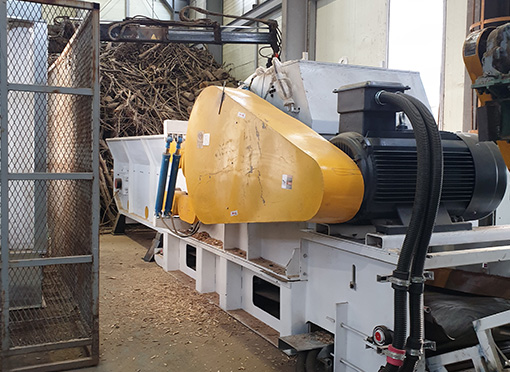

Wood chipper (also known as tree chipper) is a machine that is used to cut wood log, tree limbs, trunks, and branches into small wood chips. RotexMaster wood chipper is with electric type and diesel engine type. The capacity ranges from 1t/h to 50t/h. We can help to choose suitable model according to your capacity requirement and the size of your raw material.

Wood Waste Wood Log Slab Wood Pallet Building Template Bamboo

Wood crusher is used to further crush the larger materials into small wood sawdust or power. The size of crushed material could be changed by changing different screen with different hole. Normally, the finished size is from 2mm to 30mm adjustable.

Wood Chips Rice Husk Peanut Shell Straw Grass Alfalfa

Don’t let Moisture dampen your profits. Moisture content control of raw material is critical before pelletizing. the suitable moisture to make wood pellets is 12%-15%. ROTEXMASTER biomass dryer can meet your requiremtn with different model and design.

Wood Chips Sawdust EFB Fiber Other Crushed Materials

The efficient storage of raw materials is critical for pelletizing. If required, our storage solutions offer availability. With the first-in-first-out principle without dead areas, our customers can store a variety of materials without loss.

Wood Chips Sawdust Powder Other Crushed Materials

Wood pellet machine is the key part of the wood pellet production line. It is applied for pressing various biomass materials. The output of our pellet machine ranges from 1 to 30 t/h. We can help you choose suitable model according to your capacity requirements.

Sawdust Powder Other Crushed Materials

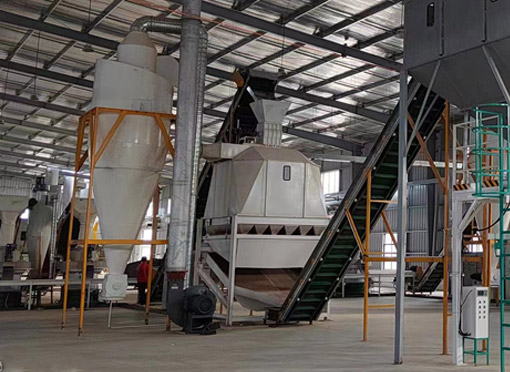

When outlet from pellet machine, the temperature of wood pellets can reach about 60-80 degrees and the moisture content is close to 15%. The structure of pellets is relatively loose, and it is easy to break. So a pellet cooler is needed. After cooling, the temperature is not higher than room temperature +3-5. Also the surface temperature and moisture content reduced, making the wood pellets easy to store.

Biomass Pellets Wood Pellets

Finished wood pellets are easily damp after cooling. Therefore, packing machine is needed to make the pellets dry and water-proof, so as to extend the storage time. Normally, we recommend our customers to choose bag packing machine(20kg to 50kg per bag ) or ton scale(1 ton per bag). Note: The wood pellets should be stored in a well ventilated place to avoid the direct sunlight.

Biomass Pellets Wood Pellets

Process Control

Process Control

Process Control

In order to make the operation of our machines as user-friendly and simple as possible, ROTEXMASTER has developed various control system, PLC automatic device, remote control system, APP control system, which maximized saving of manpower and realizing benefits.

Wood Pellet Production Line Wood Pellet Plant
